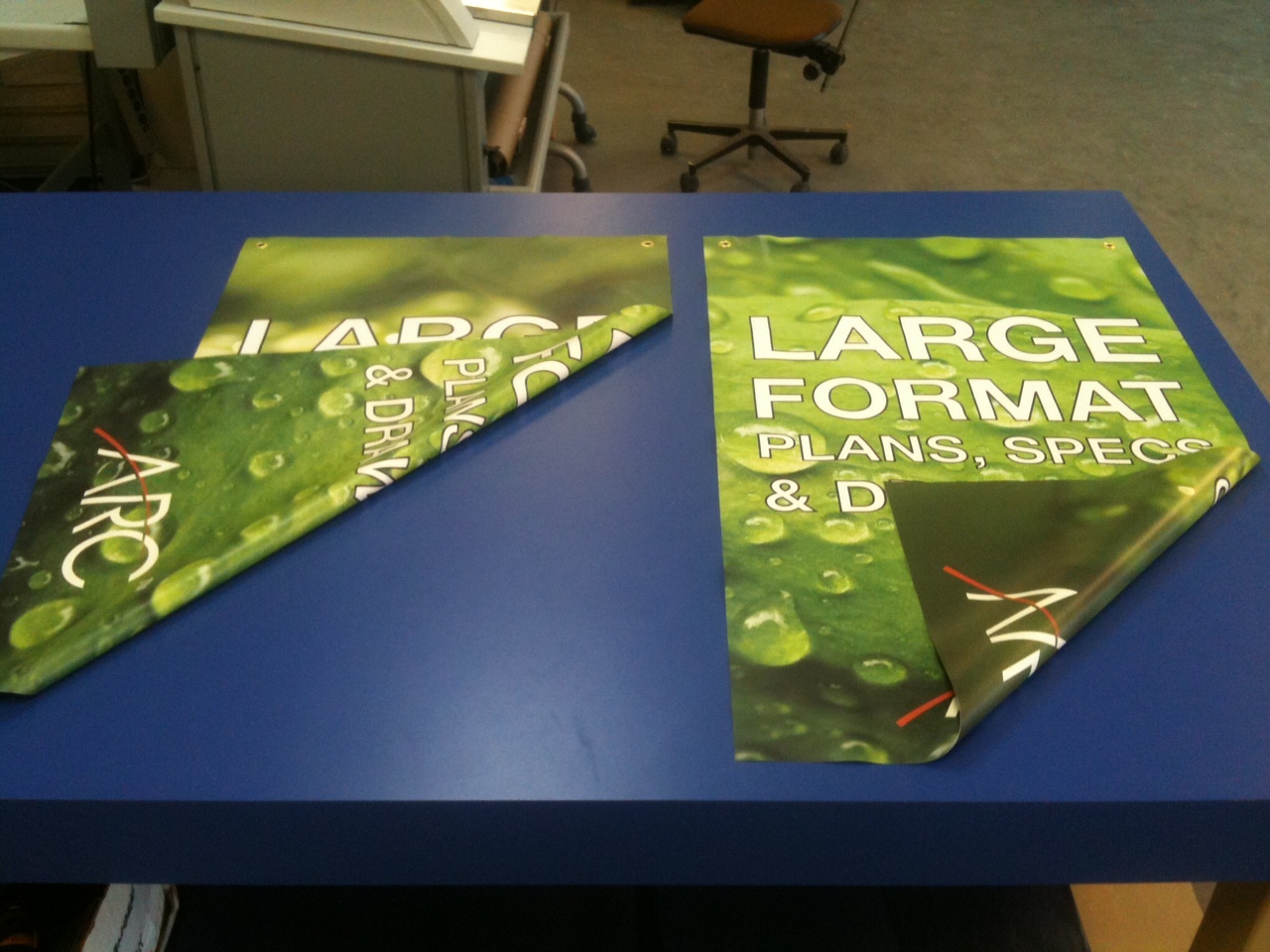

AsianatFlex ASIA18014 Blockout PVC is a pure white, double sided printable Blockout PVC banner for indoor and outdoor signage.

Feature:

1. 545 gram, pure white finish.
2. Excellent printability on both sides.
3. Block-out function.
4. Anti-wicking.
5. UV, high temperature and tear resistance.
6. Acrylic coated to prevent pollution and slow the plasticizer migration process.



Application：

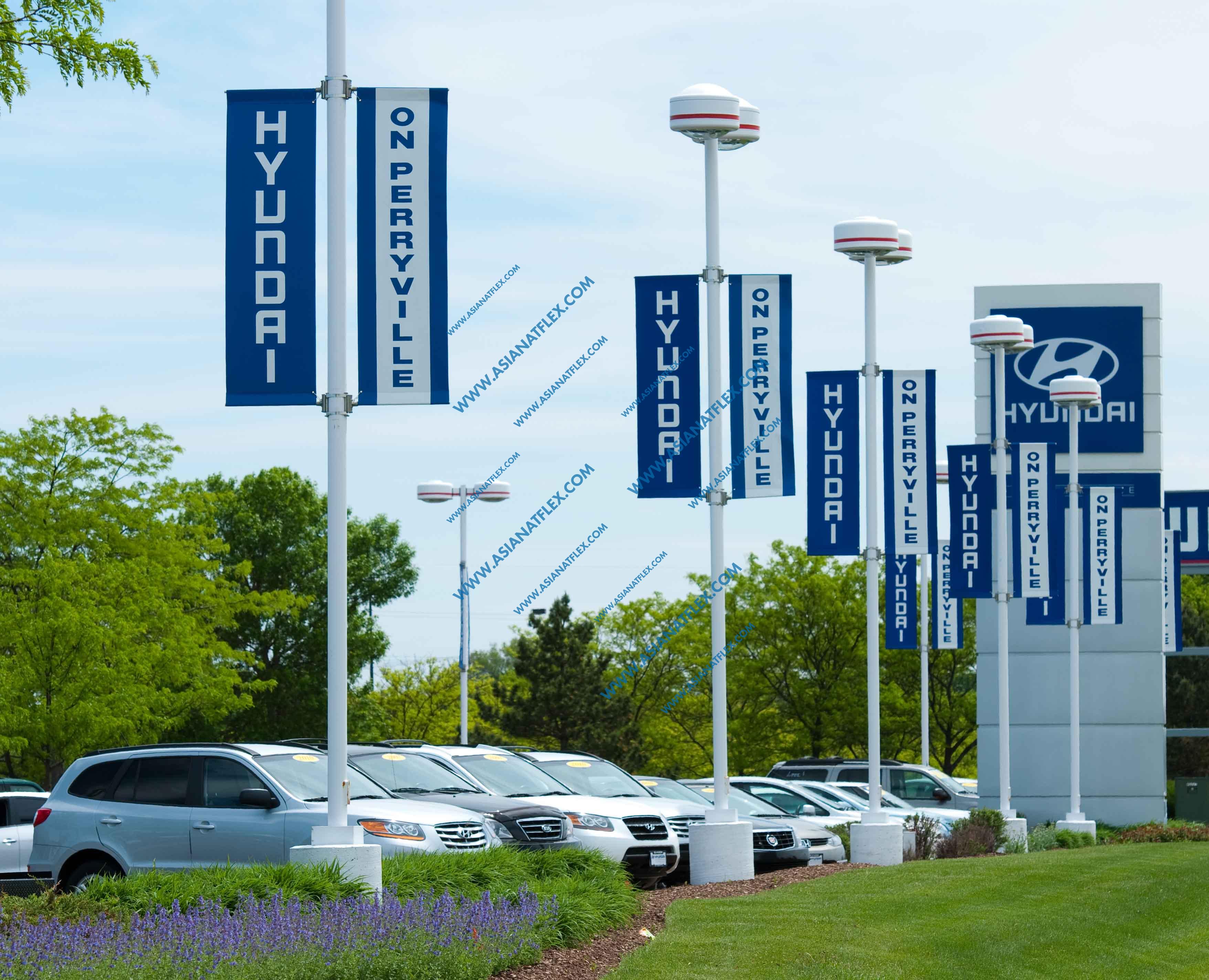

Banners, Billboards, Hanging banners

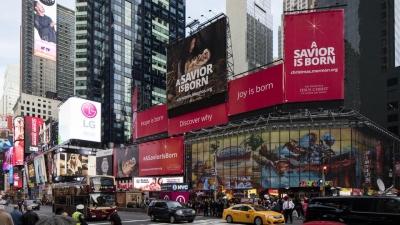

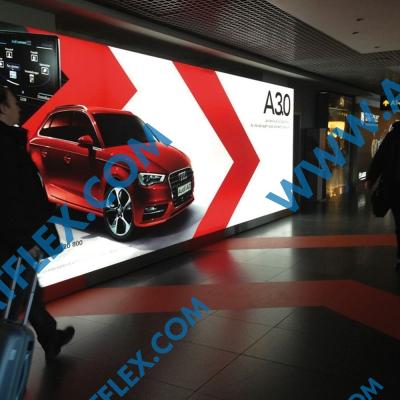

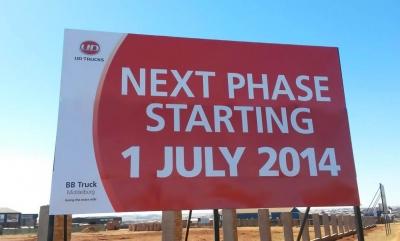

Coated PVC backlit is wide format print light box banner, is made from high quality polyester fiber weave fused between two vinyl layers which create a smooth matte print surface, a bright white finish, and excellent tear resistance, and durability for UV resist.

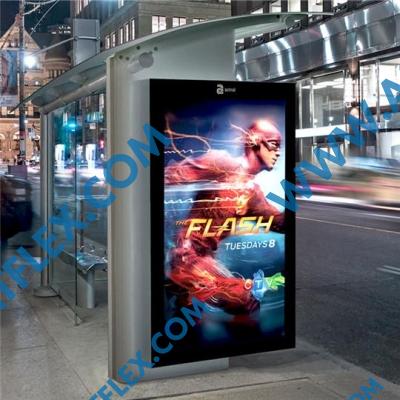

Our Coated backlit banner is the recommended option for outdoor light box visuals. High intensity and durability with good light transmittance make printed graphics brighter color at night time.

AsianatFlex backlit banner materials work with solvent, eco-solvent, and UV and Latex printers and come in a variety of thicknesses and sizes to meet your specific application requirements.

The Max width of coated backlit banner is 5.1 meter (197”).

AsianatFlex’s backlit media can meet requirement of REACH, SGS and B1, B2, M1, M2, NFPA701, DIN75200 and can be lacquered with acrylic or PVDF.



---

Characteristics:

1. Glossy and matt types available.
2. 32% above High Light-Admitting Quality, high resolution image quality.
3. Strong structure and anti-UV Processing Weathering Resistance
4. Surface after mildew proof Antifouling Processing
5. Spurt Directly Draws or the Fitting Cellophane
6. Structure, Anti-typhoon
7. Guards against the Flame to Bear Burns, Security Material
8. Bears Each Chemistry Solvent
9. Temperature resistance: -20 ~ 70C

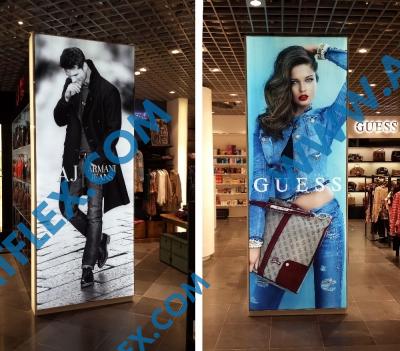

10. Translucent substrate for light box display.
11. Quick to absorb ink and be dry.



Features and Application:

1. Compatible with solvent or eco-solvent, UV and Latex Ink
2. Printable with inkjet printers like VUTEK, ROLAND, AGFA, MUTOH, MIMAKI, DGI, SCITEX, INFINITI, NUR, SCITEX, FLORA, etc.
3. Used for road sign advertising, photographic , backdrop, wide format graphics, wall Art decoration,  display stands, light box



Type	Description	Base Fabric	Weight(g/sqm)	Length(m)	Width(m)
ASIA010	Coated backlit banner	1000*1000D 20*20/sq.in	560 (16.5oz)	50m/roll	1.6/2.2/2.5/3.2/5m
ASIA011	Coated backlit banner	1000*1000D 20*20/sq.in	510(15oz)	50m/roll	1.6/2.2/2.5/3.2/5m
ASIA012-1	Coated backlit banner	500*500D, 28*28/sq.in	510(15oz)	50m/roll	1.6/2.2/2.5/3.2/5m
ASIA012	Coated backlit banner	500*500D, 18*18/sq.in	560 (16.5oz)	50m/roll	1.6/2.2/2.5/3.2/5m

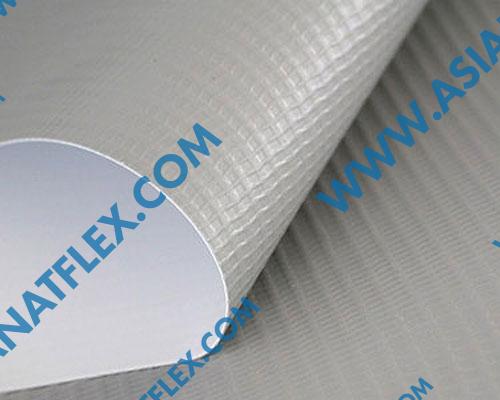

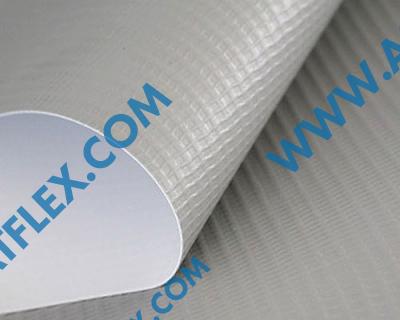

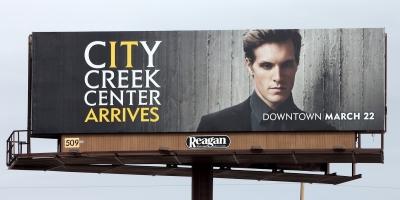

Frontlit Grey Back banner same like Black Back banner is a blackout advertising banner material made of printable PVC surface with grey back. The difference between blockout and frontlit is that PVC blockout has a darkening effect; no light can pass through it.

Frontlit Grey Back has also better graphics performance on hanging banner, event banner, backdrop, outdoor billboard, street banner, pole flag banner, Post display, Roll up…



The Max width of Frontlit Grey Back is 5.1 meter (197”).

AsianatFlex’s flex blockout can meet requirement of REACH, SGS, ROSH and Fire retardant B1, B2.







---

Characteristics:

1. Glossy and matt types available.
2. White substrate for wide format digital printing.
3. Quick to absorb ink and fast dry, with excellent color.
4. Easy to cut, seam and install.
5. Peeling strength: cannot peeling.
6. Temperature resistance: -30 ~ 70 C.
7. Greater resistance to Moisture and salt
8. Colors: White/ Black, White/ Grey.
9. Good anti- light, completely airtight.
10. Anti-UV processing weathering resistance.
11. Surface after mildew proof antifouling processing.
12. Structure: anti-typhoon.
13. Manufactured with cutting-edge technology for obtaining best shiny surfaces.
14. Guards against flame to bear burns, security material bears each chemistry solvent.



Feature and Application:

1. Compatible with UV, Latex, solvent or eco-solvent based ink.
2. Printable with inkjet printers like VUTEK, ROLAND, AGFA, MUTOH, MIMAKI, DGI, SCITEX, INFINITI, NUR, SCITEX, FLORA, etc.
3. Digital printing, screen printing, used as signage outdoor like billboard/hoarding, exhibition, etc. hanging banner, event banner, backdrop, street banner, pole flag banner, Post display, Roll up…





Type	Description	Base Fabric	Weight(g/sqm)	Length(m)	Width(m)
ASIA005-B-G	Coated Grey Back	1000*1000D18*18/sq.in Weave fabric	440(13oz)	50m/roll	1~3.2m, 5m
ASIA007-B-G	Coated Grey Back	1000*1000D, 16*16/sq.in Weave fabric	440(13oz)	50m/roll	1~3.2m, 5m
ASIA022-2-G	Laminated Grey Back	500*500D, 9*9/sq.in Weave fabric	240( 7oz)	50m/roll	1~3.2m, 5m
ASIA024-G	Laminated Grey Back	500*500D 9*9/sq.in Weave fabric	280(8oz)	50m/roll	1~3.2m, 5m
ASIA026-G	Laminated Grey Back	840*840D, 6*6/sq.in Weave fabric	340 (10oz)	50m/roll	1~3.2m, 5m
ASIA030-G	Laminated Grey Back	500*500D 9*9/sq.in Weave fabric	440(13oz)	50m/roll	1~3.2m, 5m
ASIA032-G	Laminated Grey Back	300*500D, 18*12/sq.in Weave fabric	440(13oz)	50m/roll	1~3.2m, 5m
ASIA034-G	Laminated Grey Back	840*840D, 9*9/sq.in Weave fabric	440(13oz)	50m/roll	1~3.2m, 5m
ASIA036-G	Laminated Grey Back	1000*1000D, 9*9/sq.in Weave fabric	510(15oz)	50m/roll	1~3.2m, 5m

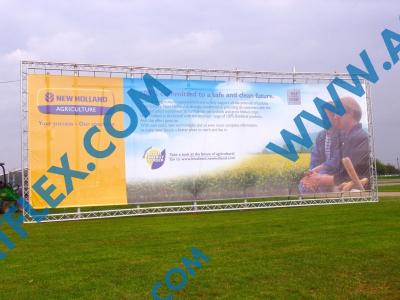

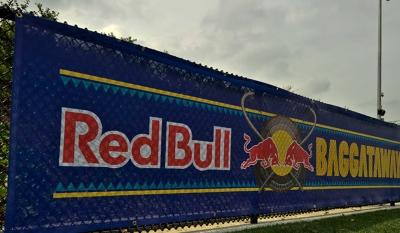

Mesh Banner is open structure allows wind blow, with 100% polyester mesh material. The material provides a unique fabric alternative to traditional PVC mesh products; with medium weight fabric wrap designed with attaching to rental fencing, scaffolding and hoarding in mind. It is ideally suited for privacy screening and dust control requirements. Also, screened fences may reduce insurance site costs in particular applications. Fence mesh is a tight weave design poly-fabric and is capable of full color graphics, photographic applications and logo repeats."



Our Mesh is popular, strong and made for securing to open wire fences, as used by builders, contractors and developers to surround screen construction sites".

AsianatFlex Mesh banner is popular for construction and building contractor local managers advertising their project and identifying the site contractor on the hoarding, scaffolding or temporary fencing rent panels. It is a strong polyester material and well suited for privacy banner signage printing vs. old style PP shade cloth.



Characteristics:

1. Perfect one side printing.
2. Good physical strength with twin layer hemmed edge.
3. With excellent color.
4. Easy to cut, seam and install.
5. Structure: anti-typhoon, breathable holes for wind.
6. Direct sublimation printing.
7. Large size, custom and panel temp fencing.
8. Outdoor life: 12-18 months



Feature and Application:

1. Compatible with Sublimation, latex, UV, Pigment.
2. Mesh Banner can be used in： construction site contractor advertising, stadium fencing, temporary fence rental screening, privacy and dust control screens, medium term outdoor advertising, privacy fence screen。



Type	Description	Fabric	Weight(g/sqm)	Length(m)	Width(m)
AIRMESH D002	Polyester + PVC Coating	Knitted	120	50m/roll	1~3.2m

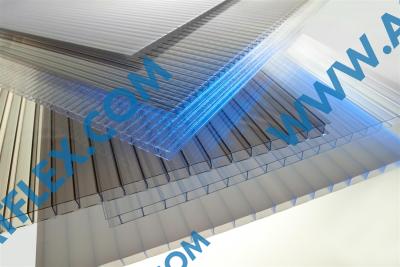

Polycarbonate (PC) hollow sun panels and double hollow board. The PC sun panels are made of high quality German Bayer Markolon raw materials and SABIC BASIN raw materials, using the most advanced co-extrusion equipment and production technology produced.



PC transprent sheet with its good lighting, impact resistance, anti-aging, light weight, physical stability and other characteristics, become one of the world's most widely used as engineering plastics, and the new building lighting decoration materials with green high environmental protection











---

Characteristics:

1. Anti-UV.
2. Lead-free, Non-toxic.
3. Highlight transmittance, PC sun plate up to 88% transparency.
4. Lightweight, Easily Reassembled.
5. Excellent Chemical and Corrosion Resistance.
6. Virtually unbreakable with extreme impact resistance.
7. Excellent optical properties.
8. More impact resistance than glass.
9. Transparent up to 2" thick.
10. Wide temperature operating range (-40F to 280F).
11. Easy to glue, hot air weld and machine.
12. Sound insulation, impact resistance:
13. Flame retardant B1 level, nontoxic and fire self-extinguishing.



Thickness	4mm, 6mm, 8mm, 10mm, 12mm
Impact Strength	2.1~2.3J/M
Light transmission	40~82%
Coefficient of Thermal Expansion	0.065mm/m℃
Service Temperature	-40℃~+120℃
Density	1.2g/cm3
Heat Conductivity	3.0~3.9w/㎡℃
Tensile Strength	≥60N/mm
Flexural Strength	100n/m㎡
Modulus of Elasticity	2400Mpa
Tensile Stress at Break	≥65Mpa
Elongation at Break	＞100%

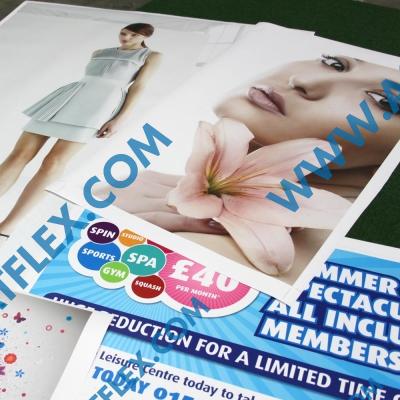

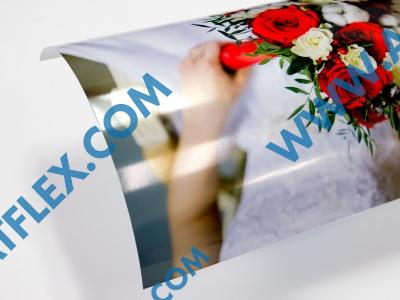

Photo Paper as a true resin-coated, glossy photo paper that offers exceptionally eye catching photo quality print reproduction on inkjet printers using low-solvent or UV-curable inks. Specifically created for these eco-solvent/ solvent and UV-curable printers, applications include economical photo reproduction, photo posters, indoor point-of-purchase and photo display images.

AsianatFlex’s Photo Paper is bright white cellulose based; latex saturated digital graphics print media made for indoor and temporary outdoor use. Strength, durability, flexibility, and the ability to fold without the image cracking are key benefits of this high quality media.

AsianatFlex’s Photo Paper is a scratch resistant lay flat imaging paper that can use without the need of lamination. When printing, using HP Latex Printers, high heat can be used to speed drying and improve ink reception without buckling, cockling, or curling. Compatible with Latex, Solvent and UV Curable printers and environmentally friendly, FSC Certified, PVC free and recyclable.

---

Characteristics:



1. Good ink absorption and Instant dry.
2. Perfect performances for photos, high resolution image quality, water resistan
3. Glossy & matte surface, long durability.
4. True resin-coated photo paper for high-quality enlargements.
5. Prints can be finished with economical thermal laminating films.
6. Glossy surface finish is superb for bright colors and reproducing sharp detail.
7. Economical media for making multiple photo prints.
8. High strength, durability, flexibility, and the ability to fold without cracking.



Features and Application:

1. Compatible ink: Water based, Pigment, Dye, Eco solvent, Mild solvent, Latex and UV ink.
2. Compatible machine: all inkjet/photo printers like Mimaki, Roland, HP, EPSON, Mutoh, Canon, Novajet…
3. Applicable for photo posters, photo reproductions, and indoor displays.



Type	Description	Style	Width (m)	Length (m)	Ink
APH220S	Photo Paper	MATT, GLOSSY	0.914/1.07/1.27/1.52	50m	Pigment, Water based, Dye, Eco-solvent, Solvent, Latex, UV
ARC200	Satin Photo Paper	SATIN	0.914/1.07/1.27/1.52	50m	Pigment, Water based, Dye, Eco-solvent, Solvent, Latex, UV
ABB120	Blue Back Paper	MATT	0.914/1.07/1.27/1.52	50m	Eco-solvent, Solvent, Latex, UV

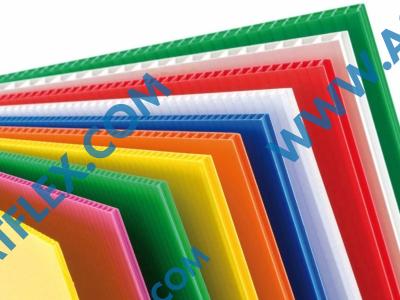

PP hollow sheet is made of Polypropylene (PP) copolymer, homopolymer resin and some fillers. It is an extruded corrugated profile sheet consisting two flat walls connected by vertical ribs, or in the pozidrive structure. PP hollow sheet is absolutely harmless and odorless, and moisture resistance & anticorrosion. Its special and great properties such as strong, lightweight, various colors make it good in packaging, advertising, construction and agriculture uses.

















---

Characteristics:

1. Corrosion and Rot Resistant.
2. Anti-static, Electric Conduction.
3. Light Weight, Fire Resistance and Low Cost.
4. Waterproof, Damp-proof and Weather Resistant.
5. High Stability, Easy Finishing, Largely Chemical Resistant.
6. Non-toxic, Pollution-free, Environment Protection, 100% Recyclable.
7. Strong Toughness, Impact Resistance, Shockproof, Buffer, Good Bending



Thickness	1.5-14.5mm
Width	1000, 1220, 2000mm are standard.  Other width can be customized
Size	1000x2000mm, 1200x2400mm, 1220x2440mm, 1530*3050mm, 2000x3000mm are standard.  Other size can be customized
Color	Black, Grey, White, Green, Blue, Red, Yellow are standard.  Other colors can be customized according to RAL / Pantone
Surface	Smooth
Weight	180-4000gsm
Printing	Available with all kinds of design

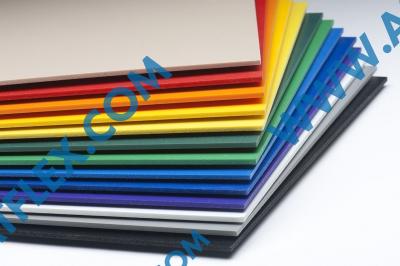

AsianatFlex PVC Foam Board is made of Free Foam processing, it is also called Closed-cell PVC foam board, which is a lightweight rigid material used primarily in the manufacture of signs and displays. It is considered robust for outdoor use, being immune to rain and resistant to wind and sunlight. Furniture, especially for the cabinet in kitchen & bathroom, advertising, traffic and transit, industry…

















---

Characteristics:

1. Anti-UV
2. Flexible;
3. Water-proof
4. Lead-free, Non-toxic;
5. Excellent Formability;
6. Perfect Machinability;
7. Outstanding Printability;
8. Lightweight, Easily Reassembled;
9. Excellent Chemical and Corrosion Resistance





Thickness	1-25.4mm
Width	915, 1220, 1560, 2050mm are standard. Other width can be customized
Size	3'×6', 4'×8', 4'×10', 4'×20' are standard; 915×1830, 1220×2440, 1560×3050, 2050×3050, 1220×5486mm are standard. Other size can be customized
Color	White, Black, Red, Yellow, Green, Blue, Grey are standard Other colors can be customized according to RAL / Pantone
Surface	Smooth, Matt and Embossing
Density	0.4-0.9g/cm3
Printing	Available with all kinds of design



Self-Adhesive Vinyl also name: PVC Vinyl Sticker, Self Adhesive Sticker, it is made of PVC film, glue and backing paper. Self-adhesive vinyl is a flexible and versatile material that can be used to make eye-catching signs and logos for business.

    AsianatFlex’s Self Adhesive Vinyl is ideal for numerous signage projects and vehicle livery. It has good weather fastness, ink absorption, and is very easy for application, widely used in indoor and outdoor signage, the point of sale, vehicle advertising, vehicle wrapped, signs, etc.

    AsianatFlex produce and supply various forms of self-adhesive vinyl, for long and short term applications, with permanent, reusable, bubble-free, wrapping and cast adhesives to cater for your requirements.



---

Characteristics:

1. Excellent in quality and durability with full color print.
2. Glossy and matt, white, black and gray glue are available.
3. Can be bubble free and UV protection.
4. Durable in bad weather like rain, wind, frost, sun exposure.
5. Excellent ink absorption, fast drying, good tear resistance and weather resistant.
6. Water fastness protection, good abrasion resistance.



Features and Application:

1. Good weather fastness, ink absorption.
2. Flexible, light, easy to operate.
3. The printable inks are solvent ink, eco solvent ink and UV inks.
4. Self-adhesive vinyl are widely used in digital printing, signs, advertisement, car decoration, vehicle graphic, window/door graphic and etc. .



Type	Description	PVC Film Thickness (mm)	Release Paper (g/㎡)	Width (m)	Length (m)
ASIA066	Self-Adhesive Vinyl White Glue	0.08	120	0.98/1.06/1.27/ 1.37/1.52	50
ASIA067	Self-Adhesive Vinyl White Glue	0.10	140	0.98/1.06/1.27/ 1.37/1.52/2.02	50
ASIA068	Self-Adhesive Vinyl Black Glue	0.10	140	0.98/1.06/1.27/ 1.37/1.52/2.02	50
ASIA069	Self-Adhesive Vinyl Grey glue	0.10	140	0.98/1.06/1.27/ 1.37/1.52/2.02	50
ASIA070	Clear Transparent Self-Adhesive Vinyl	0.08	120	0.98/1.06/1.27/ 1.37/1.52/2.02	50
ASIA071-BF	Polym- Bubble Free, Clear Removable Glue	0.08	140	0.98/1.06/1.27/ 1.37/1.52/2.02	50
ASIA071-3D	Self-Adhesive Vinyl 3D	0.12	120	0.98/1.06/1.27/ 1.37/1.52	50
ASIA072-Econo	Econo-SAV, 3-6 months lifespan	0.07	100	0.98/1.06/1.27/ 1.37/1.52	50
ASIA073-Econo	Econo-SAV, 3-6 months lifespan	0.08	100	0.98/1.06/1.27/ 1.37/1.52	50
ASIA074-Econo	Econo-SAV, 3-6 months lifespan	0.08	120	0.98/1.06/1.27/ 1.37/1.52	50
